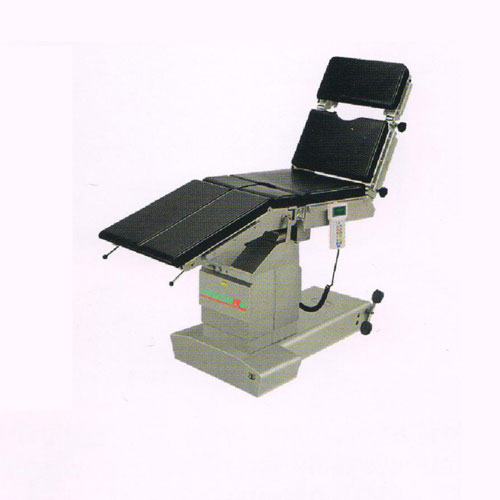

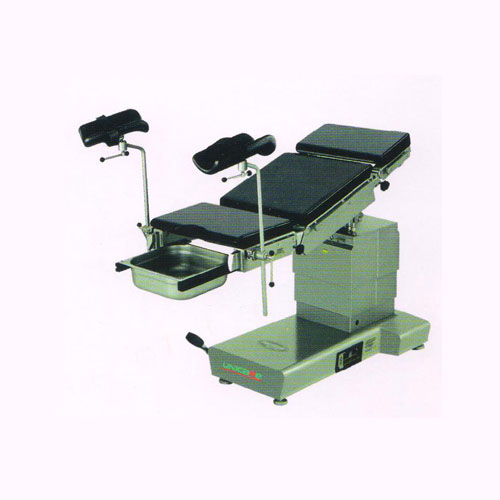

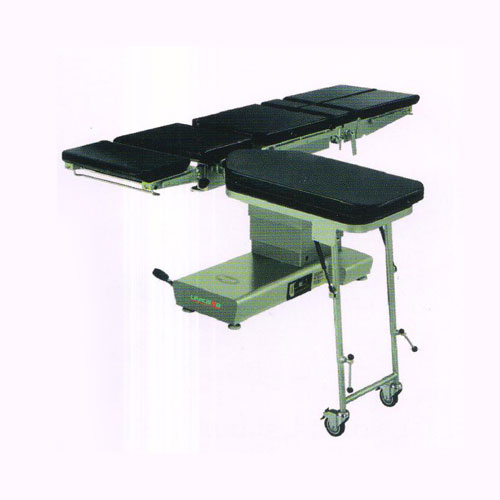

Advance Electric Table (UMS-E-201)

Advance Electric Table (UMS-E-201)

  • SS-304
  • Surgeons Panel
  • Electric (remote operated)
  • Floor Locking
  • Zero Positioning

Features : -

  1. Fully electrically operated table, five sections, radio-translucent table top with eccentric pillar and Die Compressed base.
  2. Interchangeable head and leg sections (manually).
  3. All positions operated through cable remote.
  4. Electric floor locking.
  5. Inbuild kidney bridge.
  6. Auto leveling (zero function).
  7. We are providing two handsets. Additional fixed control panel provided on the table top, which can be used in case of failure of main hand set.
  8. Indication of Battery Back provided in the hand set.
  9. Handset is providing Dual Memory Function which can be set and reset.

Technical Data



Top Dimension

L 1900mm x W 522mm

Height Adjustment

750 mm - 1000 mm

Trendelenburg/Reverse

30 Degree / 25 Degree

Lateral Till

20 Degree / 20 Degree

Kidney Elevator

130 mm

Back Rest (up/down)

60 Degree / 25 Degree

Leg Rest (up/down)

10 Degree / 90 Degree

Head Rest (up/down)

20 Degree / 60 Degree

Power Supply

24V DC

Battery Backup

2-3  hours (optional)

Mains Voltage

AC 220V 10% 50Hz

Patient Weight Capacity

250 kgs
