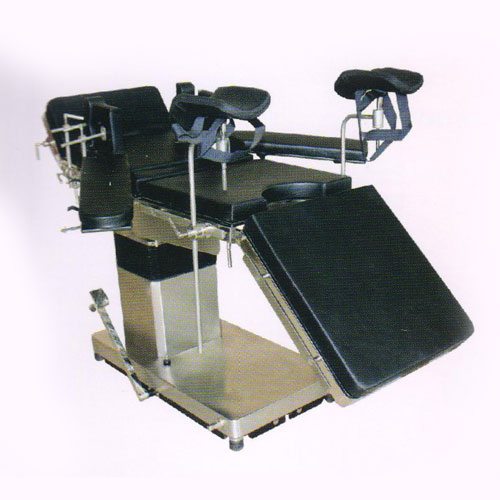

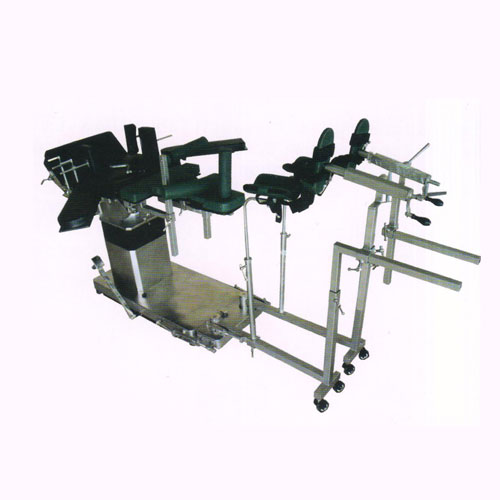

Hydraulic C-Arm Table (UMS-CH02)

Hydraulic C-Arm Table (UMS-CH02)

  • SS-304
  • Surgeons Panel
  • Hydraulic Operated
  • C Arm Compatible

Features : -

  1. Hydraulic and Mechanical operated table, five sections, radio-translucent table top pillars and Die Compressed base.
  2. The base is eccentric for trouble-free C-ARM movements.
  3. Leg and Head section are interchangeable.
  4. Eccentric pillars, Stainless Steel sheet fitting.
  5. Detachable head, leg and pelvic section.
  6. Inbuild kidney bridge.
  7. Five sectional radio-translucent.
  8. Base and cover  made of  attractive, easy to clean stainless steel.
  9. Sophisticated mechanics provide smooth, stepless articulation of the table top for precise patient positioning.

Technical Data

Top Dimension

L 1900mm x W 522mm

Height Adjustment

750 mm - 1000 mm

Trendelenburg/Reverse

30 Degree / 25 Degree

Lateral Till

20 Degree / 20 Degree

Kidney Elevator

130 mm

Back Rest (up/down)

60 Degree / 25 Degree

Leg Rest (up/down)

10 Degree / 90 Degree

Head Rest (up/down)

20 Degree / 60 Degree

Power Supply

24V DC

Battery Backup

2-3  hours (optional)

Mains Voltage

AC 220V 10% 50Hz

Patient Weight Capacity

250 kgs
